單室臥式高壓氣淬真空爐（交替氣冷型）

時間：2019-11-18

產品介紹

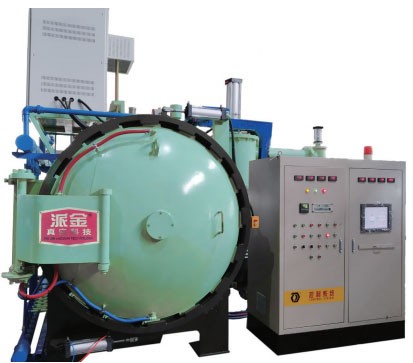

單室臥式高壓氣淬真空爐（交替氣冷型）

Single chamber horizontal high pressure and high flfl ow rate gas quenching vacuum furnace (alternating gas cooling type)

應用簡介/Application

適用于工模具鋼、高速鋼、不銹鋼等材料的淬火處理；不銹鋼、鈦及鈦合金等材料的固溶處理；多種磁性材料的退火處理及回火處理；也可用于真空釬焊及真空燒結等

Application: It is suitable for quenching treatment of die steel, high speed steel, stainless steel and other materials; solid solution treatment of stainless steel, titanium and titanium alloy; annealing treatment and tempering treatment of various magnetic materials; can also be used for vacuum brazing and vacuum sintering, etc.

產品特點/characteristic

1.采用一體擠壓圓形換熱器，冷卻速度提高100%，穩定性高

The cooling rate is increased by 100% and the stability is high.

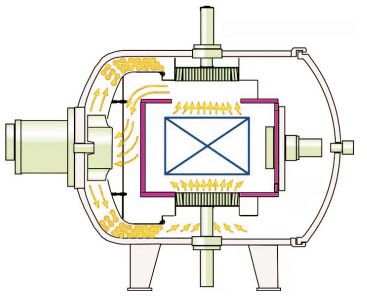

2.采用上下交替氣冷方式，流量均勻，工件變形量小

The air cooling mode is adopted alternately up and down, the flow rate is uniform and the deformation of workpiece is small

3.加熱元件沿加熱室四周均勻布置，溫度均勻性高，熱攪拌可用于真空回火

The heating element is evenly arranged around the heating chamber with high temperature uniformity. Hot stirring can be used for vacuum tempering

4.采用復合硬氈/金屬屏為加熱室隔熱層，較風管結構的節能30%

The composite hard felt / metal screen is used as the heat insulation layer of the heating chamber, which saves 30% energy compared with the air duct structure

5.工件變形小，生產效率高，使用成本低 40%

Workpiece deformation is small, production efficiency is high, the cost is lowered by 40%

6.編程工藝靈活輸入，機械動作穩定可靠，故障自動報警/顯示

Flexible input of programming process, stable and reliable mechanical action, automatic alarm / display of fault

7.氣淬風機變頻驅動，對流加熱功能可選、九點測溫可選、分級及等溫淬火

Frequency conversion drive of gas quenching fan, optional convective heating function, optional nine point temperature measurement, classification and austempering

8. 全智能化工業計算機控制系統并有一套手動操作系統

Fully intelligent chemical industry computer control system and a manual operating system

9. 操作簡潔、編程工藝靈活輸入、機械動作穩定可靠

Simple operation, flexible input of programming process, stable and reliable mechanical action.

10.手動/半自動/自動故障自動報警/顯示

Manual / semi-automatic / automatic fault automatic alarm / display

產品規格/product specifications

注：特殊規格要求可根據客戶要求定制

Note: Special specification requirements can be customized according to customer requirements

參數 / 型號 Parameter/ Model	PJ-Q557	PJ-Q669	PJ-Q7711	PJ-Q8812	PJ-Q9916
有效熱區 W×H×L Effective hot zone	500×500×700	600×600×900	600×600×900	800×800×1200	900×900×1600
裝載重量（KG） Load weight	300	500	800	1200	2000
最高溫度（℃） Max.temprature	1350	1350	1350	1350	1350
爐溫均勻性（℃） Furnace temperature uniformity	±5	±5	±5	±5	±5
真空度（Pa） vacuum degree	4.0 E -1/ 6.7 E -3	4.0 E -1/ 6.7 E -3	4.0 E -1/ 6.7 E -3	4.0 E -1/ 6.7 E -3	4.0 E -1/ 6.7 E -3
壓升率（Pa） Pressure rise rate	≤ 0.5	≤ 0.5	≤ 0.5	≤ 0.5	≤ 0.5
氣淬壓力 Gas quenching pressure	6-25	6-25	6-25	6-25	6-25
冷卻氣體（99.995％） Cooling gas	N2/Ar/He	N2/Ar/He	N2/Ar/He	N2/Ar/He	N2/Ar/He

以上參數可根據工藝要求調整，不作為驗收依據，具體以技術方案和協議為準

The above parameters can be adjusted according to the process requirements, not as a basis for acceptance, the specific technical plan and agreement shall prevail

配置選擇/Configure select

爐門開啟方式 Furnace door opening mode	回轉式 Rotary	平開式 Flat type		垂直升降式 Vertical lifting type
爐膽 Flue	石墨加熱元件與石墨氈復合屏合成結構 Synthesis structure of Graphite heating element and Graphite felt Composite screen		鉬加熱元件與金屬隔熱屏合成結構 The composite structure of Mo heating element and metal thermal insulation screen
氣淬方式 Gas quenching mode	氣流上下垂直交替氣冷 Vertical alternation of air cooling up and down		左右交替氣冷卻 left and right alternating gas cooling
真空泵組和真空計 Vacuum pump set and vacuum gauge	進口 Imported		高品質國產 High quality domestic
真空度 Vacuum degree	高真空 High vacuum		中真空 Medium vacuum
PLC	西門子 Siemens	歐姆龍 OMRON		三菱 Mitsubishi
溫控儀表 Thermostat meter	歐陸 EUROTHERM		島電 Electric conduction
熱電偶 thermocouple	S 型分度號 S-type dividing number
記錄儀 grapher	有紙記錄儀 Paper recorder		無紙記錄儀 Paperless recorder
人機界面 human-computer interface	模擬屏 Analog screen		計算機觸摸屏 Computer touch screen
電器元件 Electrical component	高品質國產 High quality Made in China	施耐德 Schneider		西門子 Siemens
